ESCORT MAX Ci 360

The ESCORT MAX Ci 360 is the best, most advanced detection system for the ultimate in driver alert and ticket protection on the planet. Designed to be seamlessly integrated into the vehicle, it features front & rear radar detection as well as front & rear laser shifters that protect drivers against all speed monitoring devices.

Completely redesigned, the new ESCORT MAX Ci 360 gives you smaller, more powerful laser shifters that defeat the latest in laser-based speed detection technology along with updatable IVT™ filters that reject false alerts from the latest in-motion vehicle safety systems like collision avoidance and lane departure systems. The new MAX Ci 360 also includes GPS and Bluetooth® for connectivity to the ESCORT Live Community and the DEFENDER® database of red light & speed camera locations.

MAX Ci 360 is only available from certified installation experts.

Included

ESCORT MAX Ci 360

Completely Undetectable

The ESCORT MAX Ci 360 is completely undetectable to all radar detector detectors, keeping you unseen and unnoticed.

ESCORT MAX Ci 360 Breakdown

Ultimate custom-installed radar with all new Laser ShifterMax sensors.

Breakthrough
Radar Performance

MAX Ci 360's twin-antenna design sets a new standard for long-range protection. This patented design is completely undetectable, making it the perfect choice for those who like to run unnoticed. All North American radar bands are covered, including "POP" radar.

Variable-Speed
Radar Performance

MAX Ci 360's AutoSensitivity mode varies radar sensitivity based on your vehicle's speed. The result is radar performance when needed most.

Diagram of the ESCORT MAX Ci 360 system

Discreet
Installation

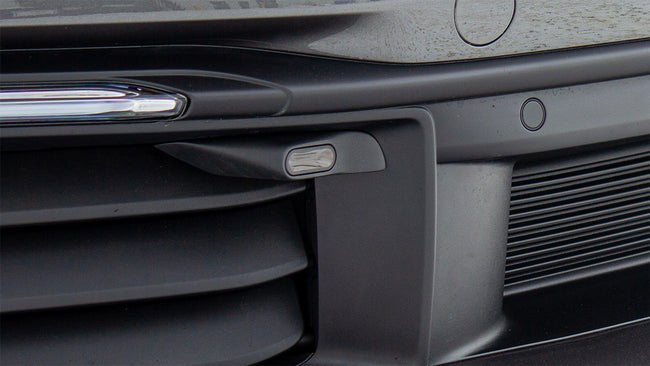

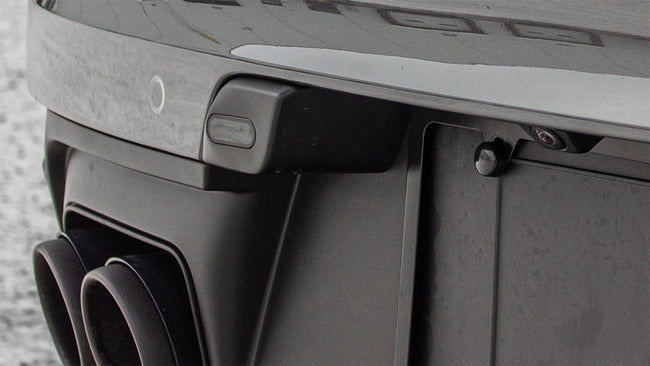

The ESCORT MAX Ci 360 with all-new ShifterMax sensors provides the ultimate in discreet operation. Included sensors are mounted in the front and rear of your vehicle. Interior control module and display are separated for multiple installation options. The result is no messy cords and no unwanted attention.

Laser Protection
Like No Other

Our front and rear laser shifters provide 360° protection against laser threats including the latest variable pulse rate laser guns. Sensors can be programmed to "shift" for maximum protection. "Shifting" may not be legal in your area. Check local laws before activating.

Mark Location

The ESCORT MAX Ci 360's "Mark Location" feature enables the customer to manually mark known speed traps, camera locations, or anything else worth noting. Once stored in its memory, the MAX Ci 360 will provide sufficient warning for all of these points of interest.

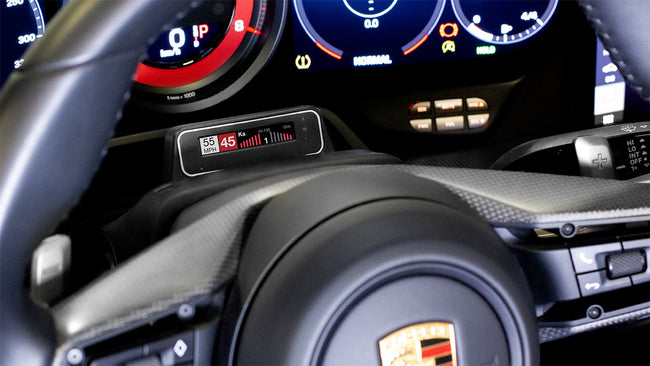

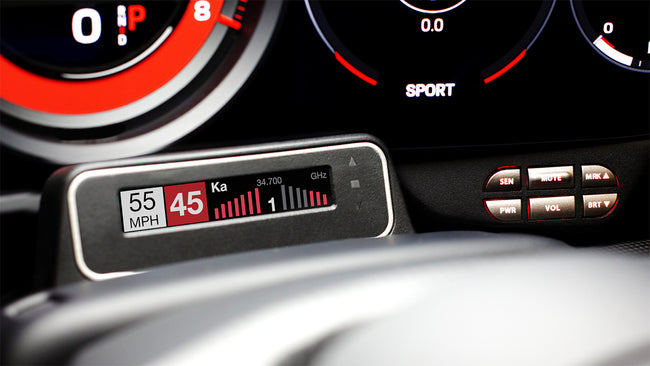

High-Resolution Display

MAX Ci 360's miniature display provides a multitude of installation options, including an in-dash bezel (included) for that factory installed look. Easy-to-read alerts and access to user preferences are clearly visible at a glance.

Safety Camera Data

The ESCORT MAX Ci 360 comes pre-loaded with our DEFENDER® Database - thousands of safety camera locations, including red light and speed-based cameras throughout North America. You can also download updates, back up your data, and stay on top of new threats directly from our website. The ESCORT MAX Ci 360 comes complete with a 3 year Defender Database Subscription.

The Best of ESCORT Live!

ESCORT MAX Ci 360 is compatible with ESCORT Live, our award-winning app and exclusive real-time ticket-protection network, which warns you of upcoming alerts received and reported by other users in the area, and gives you access to local speed limit data for over-speed alerts.

Traffic Sensor Rejection

The ESCORT MAX Ci 360 includes our proprietary Traffic Sensor Rejection (TSR) software to eliminate false alerts.

web ready icon

Web Ready

The ESCORT MAX Ci 360 can be easily updated using your computer and internet. Simply go online to download our Detector Tools program, connect the MAX Ci 360 to a PC with an active internet connection and then download the most up to date locations. You can even back up your data or update the detector's operating software, (firmware), if needed. The database is updated weekly, and Escort provides three years of downloadable updates for free.
Note: Not Mac compatible at this time.

signal processing icon

AutoLearn

AutoLearn uses GPS technology to automatically "learn" (by exact location and frequency) each radar signal and determine if it's a real threat or not. This data is updated real-time during your drive, and provides the most accurate alert system possible. The result is the most accurate long-range protection in the industry and a permanent solution to false alarms. You drive. It learns. End of story. Nothing could be easier.

MAX Ci 360 component dimensions and cable lengths
  L x W x H (inches)
Front receiver 4.75 x 3.75 x 1.38
Rear receiver 4.13 x 3.63 x 1.13
Interface 6.25 x 2.88 x 1
Display 2.75 x 0.88 x 0.5
Contoller 1.88 x 0.88 x 0.5
GPS antenna 2.75 x 2 x 0.63
ShifterMax Bridge Box 4.5 x 2.38 x 0.88
ShifterMax Sensor 2 x 1.5 x 0.63
  Cable Lengths
Front receiver 18 feet
Rear Receiver 30 feet
Interface 8 feet
Display 6 feet
Controller 8 feet
GPS antenna 29 feet
ShifterMax Bridge Box 10 inches
ShifterMax Sensor 6.3 feet
Rear Sensor Extension 20 feet

Important:

A Windows Version of Detector Tools supports Firmware, Location Database Updates, Detector Software Updates and Defender Updates for the PASSPORT Max, PASSPORT 9500ix, PASSPORT 9500i, PASSPORT 9500ci, PASSPORT SC55, MAX Ci 360 and MAX Ci 360 360. Computer must have an active Internet connection. (Operating on Windows XP, Vista, Windows 7, or Windows 8 only.)

Installation Disclaimers:

• Some vehicles may require optional mounting brackets or additional labor due to the complexity of the vehicle. • Most European and exotic cars, Mercedes, Jaguar, Porsche, Audi just to name a few, enclose their engine compartments with additional noise suppression. This makes running wires and mounting units in these vehicles more difficult. • Mounting the interior control box behind a dash panel or altering it to fit in a certain area is considered a custom installation.

Not intended for use outside North America.
For products designed for use overseas, please use the following link to find the International Distributor closest to you other than the U.S.
http://www.escortradar.com/dealer-locator.php#international
