The ESCORT MAX 360c is the first driver alert system designed for the connected car.
Have questions? Call our radar experts at 800.964.3138.
- User Manuals

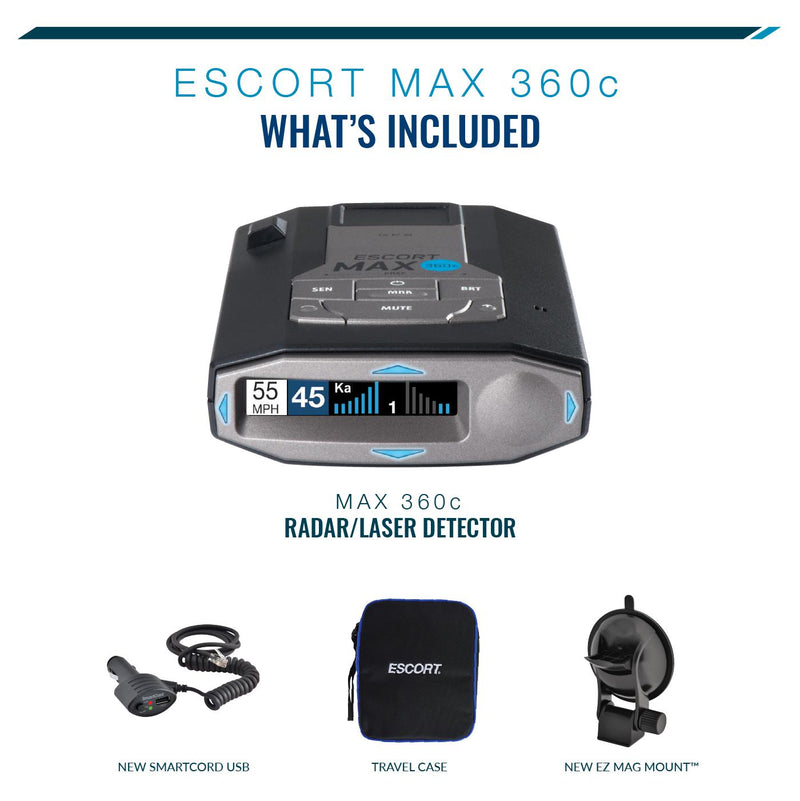

What is included with the MAX 360c?
The MAX 360c comes complete with a soft-sided travel case, NEW EZ Mag Mount windshield mount, 12-volt SmartCord® USB and quick reference guide. If you would like a more permanent installation for your MAX 360c, check out the DirectWire SmartCord® or the more basic DirectWire kit for hardwired installations.
Do you offer an earphone option?
Yes; older models require a mono earphone. Most current models have a stereo jack.
How do you mark a location?
To mark a particular location, press the "MRK" button. The display will read: "Mark?" Press the "MRK" button again to assign a label to it. There are four (4) labels: Red Light, Speed Camera, Speed Trap and Other. To scroll through the labels, simply press the volume (+) or (-) buttons until you reach the desired label. Once you've selected the label, press the "MRK" button again to confirm.
How do you block a false alert?
To lockout a false alert, (X, K or Laser only) press the mute button three (3) times, (either on the detector or the SmartCord®) during the alert. Pressing the mute button the first time will silence the audio. Pressing it a second time will generate a prompt on the display that will read: "Lockout?" Press it a third time to confirm that you want to lock this signal out by location and frequency. A "Stored" message will be displayed.
Is the 12V Smartcord required to power an ESCORT premium radar compatible with BMW models?
Yes, the Smartcord is compatible with your BMW, but might require a Standard Female Hella0(DIN) socket to Cigarette lighter type Socket adapter.
Compatible with Windows 7, 8 and 10.
The ESCORT MAX 360c is the first driver alert system designed for the connected car. When paired directly to the car’s WiFi (2.4GHz only), the MAX 360c automatically connects to ESCORT Live® without the need for a smartphone. Through the ESCORT Live app users are connected to 3.5 million registered users who generate over 8 million alerts per month.
In addition to the ESCORT Live community, the MAX 360c can be updated to the latest software and firmware over the air when connected to a WiFi network, eliminating the need to remove the detector from the car.
The ESCORT MAX 360c offers true 360 degree protection against all ticket threats out there today. Its front and rear dual antennae design offers pinpoint precision. Multi-directional arrows indicate the direction of the threat and ESCORT’s patented GPS-based AutoLearn technology, combined with IVT filtering reduces false alerts.
Directional Alert Arrows
Arrows Indicate The Direction Of The Radar Source For 360° Protection
Alerts You In Advance To Red Light And Speed Camera Locations
GPS-powered AutoLearn Technology Intelligently Rejects False Alerts
Lightning Fast Response
Digital Signal Processing Provides Extreme Range And Lightning Fast Response
Connected Car Compatible
Connected Car's Wi-Fi Provides Crowd Sourced Alerts & Software Updates
ESCORT Live App
Provides Crowd Sourced Alerts Through Bluetooth Connectivity
The ESCORT Max 360c is designed for the WiFi connected car. With the Max 360c’s connectivity you can download updates and enjoy ESCORT Live! functionality automatically.
The ESCORT Max 360c comes fully-equipped with a premium magnetic mount, a travel case, and the new Smartcord USB.
Following its predecessor, the Max 360c offers bright directional arrows around the frame of the display so you can clearly identify the threat source’s location.
X-band 10.525 GHz ± 25 MHz
K-band 24.150 GHz ± 100 MHz
Ka-band 34.700 GHz ± 1300 MHz
Laser 904nm, 33 MHz Bandwidth
RADAR RECEIVER/DETECTOR TYPE
Dual Antenna with Dual LNA Receiver
Superheterodyne, Varactor-Tuned VCO
Scanning Frequency Discriminator
Digital Signal Processing (DSP)
X-band 10.525 GHz ± 25 MHz
Quantum Limited Video Receiver
Multiple Laser Sensor Diodes
Highway, Auto, Auto No X, Auto Lo K
Graphic Multi-Color OLED
5 Levels of Brightness with Full Dark Mode
12VDC, Negative Ground
Escort SmartCord USB Included
1.38” H x 3.25” W x 5.15” L
User Mode: Advanced / Novice
Pilot: Scanning Bar / Full Word
Arrow Mode: Single / Multiple / Band
Display Color: Blue/Green/Red/Amber
Speed Display: On / Off
Cruise Alert: Off / 20 – 160 mph
Over Speed: Off / 20 – 160 mph
Over Speed Limit: Off / Spd Limit / 5 over / 10 over / 15 over / 20 over
Meter Mode: Standard/FR1/FR2/Spec/Expert/Simple
Tones: Standard / Standard+ / Mild
AutoMute: Low / Med / High / Off
AutoLearn: On / Off
Units: English / Metric
Language: English / Spanish
Voice: On / Off
GPS Filter: On / Off
Auto Power: Off / 1-8 Hours
Markers: Other/RedLight/RedLight & Speed Cam/Speed Cam/Speed Trap/Air Patrol
Clear Locations: Marked/Lockouts/Defender/Format
Wi-Fi: On / Off
Bluetooth: On / Off
Auto Update: Off/Database/Firmware/All
Perform Update: Firmware/Database
