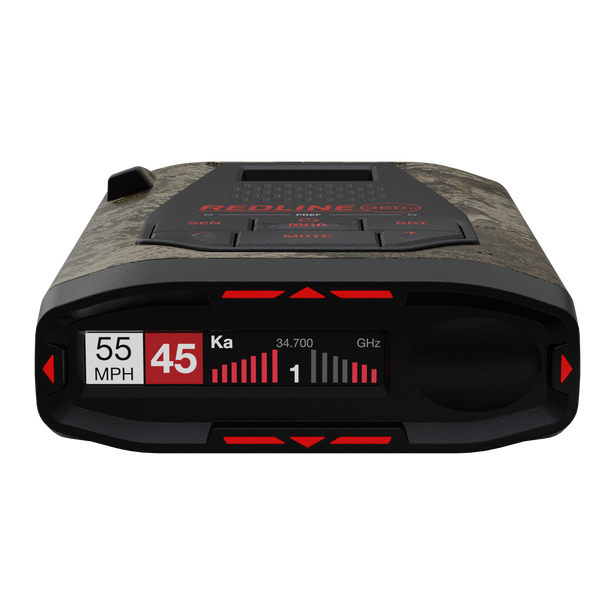

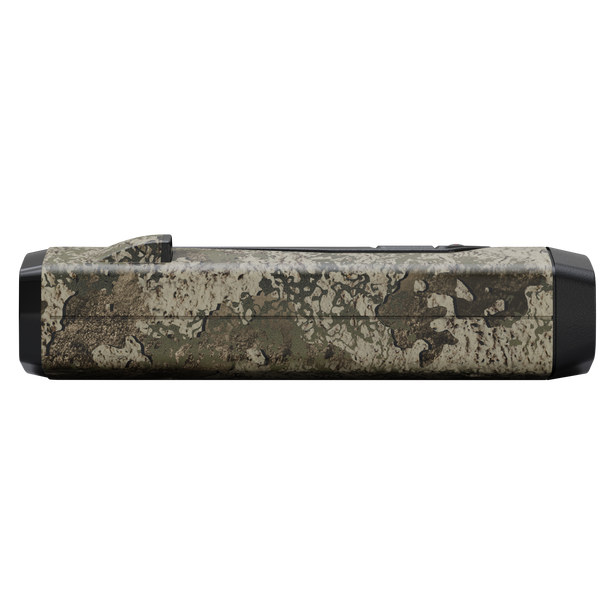

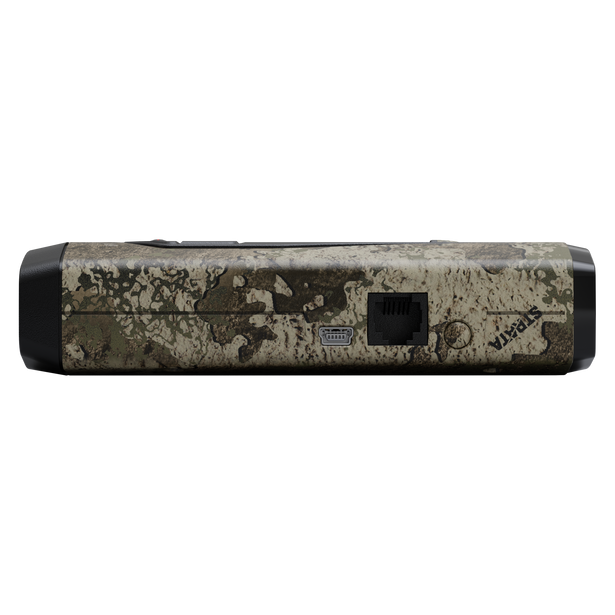

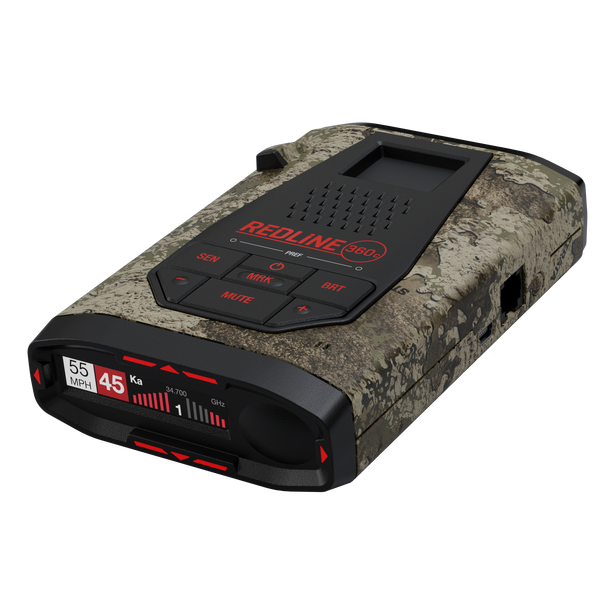

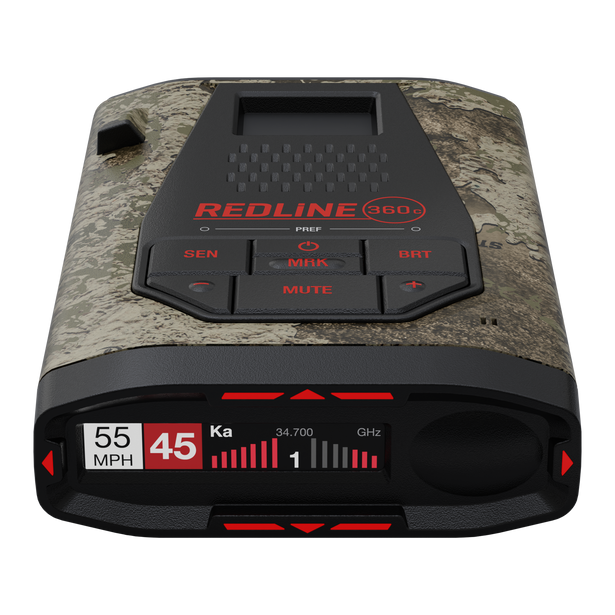

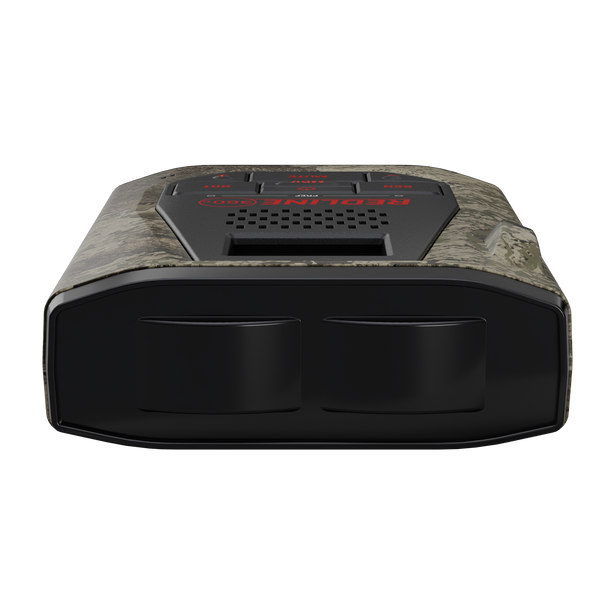

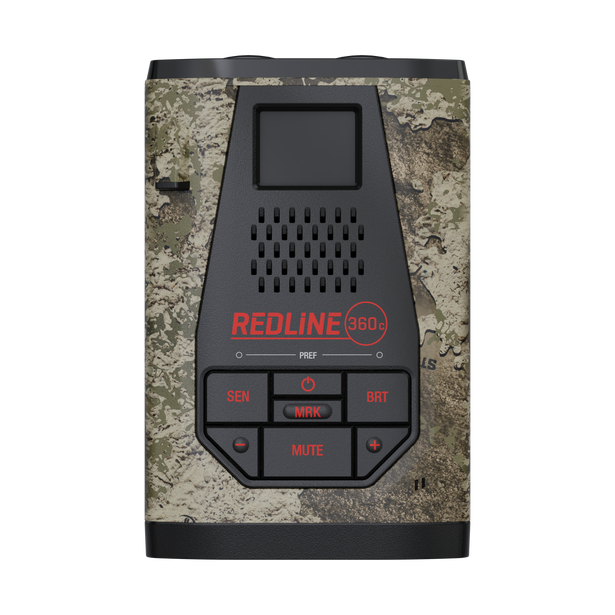

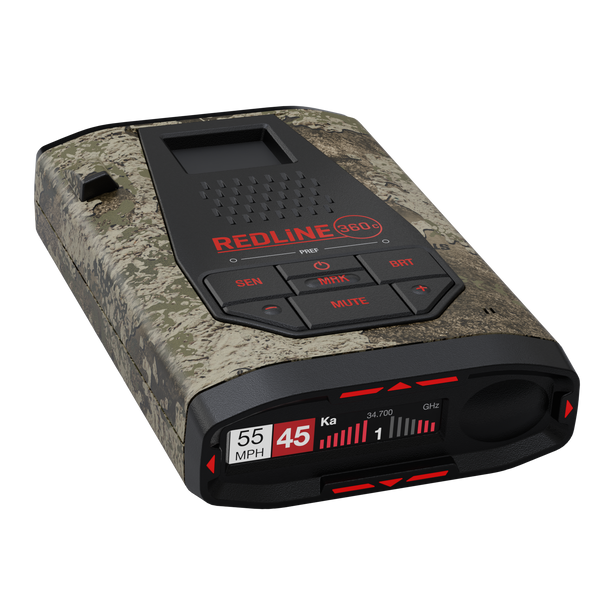

Redline 360c
Strata Camo
The best defense they'll never see coming
$25 of every unit sold goes towards Homes for Our Troops, and with only 1008 available, be sure to pre-order yours before they sell out.
Redline 360c
Strata Camo
Rare by design, legendary by performance.
Trade In Program
We'll buy back your old detector and give you credit towards your new one.
Limited Ticket Guarantee
Buy any current Escort portable radar and we'll pay your radar or laser speeding ticket.
Get The Lowest Price
Find a better price online for any current Escort portable radar and we'll match it within 30 days.
Free Shipping
We offer free UPS Ground shipping on all orders $99 and up.
In The Box
- Travel Case
- Redline 360c
- SmartCord USB + Mute

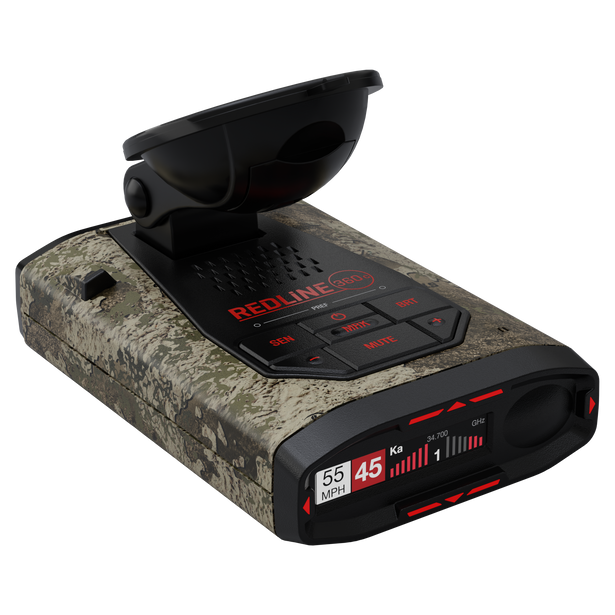

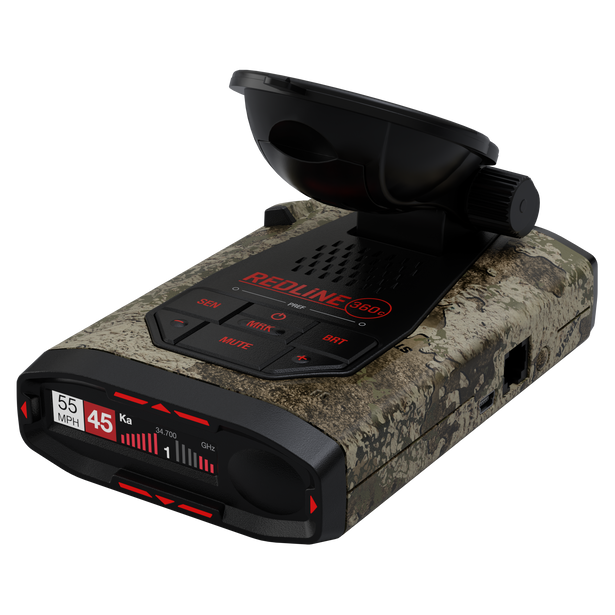

- EZ MAG Mount Suction Cup
(Windows version compatible with Windows 7, 8, 10 and 11)
(Mac version compatible with version 10.10+. Not compatible with any Max Ci series or iXCi remote systems)
Item # 0100040-4
REDLINE 360c TECH SPECS
OPERATING BANDS
X-band 10.525 GHz ± 25 MHz
K-band 24.100 GHz ± 150 MHz
Ka-band 34.700 GHz ± 1300 MHz
Laser 904nm, 33 MHz Bandwidth
RADAR RECEIVER / DETECTOR TYPE
Dual Front, Single Rear Antenna with Three LNAs
(X band – front only; K, Ka and Laser – front and rear)
Superheterodyne, Synthesized Varactor-Tuned VCO
Software Defined Radio Receiver (SDR)
Blackfin DSP processor
PATENTED TOTALSHIELD TECHNOLOGY
LASER DETECTION
Quantum Limited Video Receiver
Multiple Laser Sensor Diodes
SENSITIVITY CONTROL
Highway, Auto, Auto No X and Auto Lo K
DISPLAY TYPE
Graphic Multi-Color OLED
Bar Graph
5 Levels of Brightness with Full Dark Mode
MUTE, AUTOMUTE AND SMARTMUTE
POWER REQUIREMENT
12VDC, Negative Ground
SmartCord USB Included
BLUETOOTH SMART (BLE)
WI-FI 802.11 B/G (2.4 GHz)
UNIT DIMENSIONS
1.3” H x 3.35” W x 5.13” D
USER PREFERENCES
User Mode: Advanced / Novice
Pilot: Scanning Bar / Full Word
Arrow Mode: Single / Multiple / Band
Display Color: Blue/Green/Red/Amber
Speed Display: On / Off
Cruise Alert: Off / 20 – 160 mph
Over Speed: Off / 20 – 160 mph
Over Speed Limit: Off / Spd Limit / 5 over / 10 over / 15 over / 20 over
Meter Mode: Standard/FR1/FR2/Spec/Expert/Simple
Tones: Standard / Standard+ / Mild
AutoMute: Low / Med / High / Off
AutoLearn: On / Off
Units: English / Metric
Language: English / Spanish
Voice: On / Off
GPS Filter: On / Off
Auto Power: Off / 1-8 Hours
Bands: X/K/KN1-KN4/Ka/KaN1-KaN10/Ka-POP/Laser/TSR
Markers: Other/RedLight/RedLight & Speed Cam/Speed Cam/Speed Trap/Air Patrol
Clear Locations: Marked/Lockouts/Defender/Format
Wi-Fi: On / Off
Bluetooth: On / Off
Auto Update: Off/Database/Firmware/All
Perform Update: Firmware/Database
Please note: Works with most vehicles. Some late model vehicles such as newer BMWs may have 12v outlets with non-standard dimensions, preventing full insertion of the SmartCord plug. Users with such vehicles may consider a Direct Wire kit or third-party solution. For more information, HERE.
Will Wi-Fi/Bluetooth connectivity work with my vehicle?
Wi-Fi/Bluetooth connectivity may vary depending on your hotspot, network, and phone. Compatibility with all systems, including certain in-vehicle hotspots like OnStar/GM, is not assured.
What is included with RedLine 360c?
RedLine 360c comes complete with a soft-sided travel case, NEW EZ Mag Mount windshield mount, 12-volt SmartCord® USB and quick reference guide. If you would like a more permanent installation for your RedLine 360c, check out the DirectWire SmartCord® or the more basic DirectWire kit for hardwired installations.
Do you offer an earphone option?
Yes; older models require a mono earphone. Most current models have a stereo jack.
How do you mark a location?
To mark a particular location, press the "MRK" button. The display will read: "Mark?" Press the "MRK" button again to assign a label to it. There are four (4) labels: Red Light, Speed Camera, Speed Trap and Other. To scroll through the labels, simply press the volume (+) or (-) buttons until you reach the desired label. Once you've selected the label, press the "MRK" button again to confirm.
How do you block a false alert?
To lockout a false alert, (X, K or Laser only) press the mute button three (3) times, (either on the detector or the SmartCord®) during the alert. Pressing the mute button the first time will silence the audio. Pressing it a second time will generate a prompt on the display that will read: "Lockout?" Press it a third time to confirm that you want to lock this signal out by location and frequency. A "Stored" message will be displayed.
Is the 12V SmartCord required to power an ESCORT premium radar compatible with BMW models?
Yes, the SmartCord is compatible with your BMW, but might require a Standard Female Hella0(DIN) socket to Cigarette lighter type Socket adapter.
Will Wi-Fi/Bluetooth connectivity work with my vehicle?
Wi-Fi/Bluetooth connectivity may vary depending on your hotspot, network, and phone. Compatibility with all systems, including certain in-vehicle hotspots like OnStar/GM, is not assured.
